(001-1077)12-6 TOYOTA 1HD-T 3" AS TD05H-18G turbo with 7cm Bolt-on Hsg

P/N
001-1077

Item Name
MAMBA 12-6 Billet Turbocharger For TOYOTA Land Cruiser 1HD-T / 1HD-FT 3" A/R .60 TD05H-18G with 7cm Bolt-on Housing

Product Situation
Brand New in Box.
Complete CHRA balanced by SCHENCK MBRS110 Germany

Application
For 1991~1997 TOYOTA 1HD-T / 1HD-FT 4.2L Land Cruiser (HDJ79 / HDJ80)

Replace & Upgrade 17201-17010, 17201-17030

Bolt Up to fit factory exhaust manifold and dump pipe

Cover inlet pipe / Air filter needs to modify to fit this 3” inlet.

(Not For 17201-17040 for 1HD-FTE inquiring different compressor housing)

Smaller 7cm^2 Turbine housing makes complete turbo spool faster than factory CT26 turbo and bigger 16G billet wheel supports full airflow to support top end as well
Wheel Spec
Compressor Wheel : 50.39 / 68 mm (6+6 Blade 18G Billet Wheel w/ Extended Tip)

Turbine Wheel : 49.2 / 56 mm (12 Blade TD05H Turbine Wheel)

Actuator
0.8bar spring is pre-installed on the adjustable actuator
Additional 1.2bar and 1.5bar spring go with box.

Turbine Housing
Compressor Housing : 3” inlet / 2” outlet / A/R .60
Turbine Housing : 7cm (A/R .49)

Bearing
Journal Bearing

Performance Thrust Bearing Kit included

Cooling
Oil & Water-cooled system

Kit Includes
1 x Oil Feed Line Kit
1 x Oil Return Pipe Kit
2 x Water Line Kit
1 x Turbine Inlet Gasket
1 x Turbine Outlet Gasket

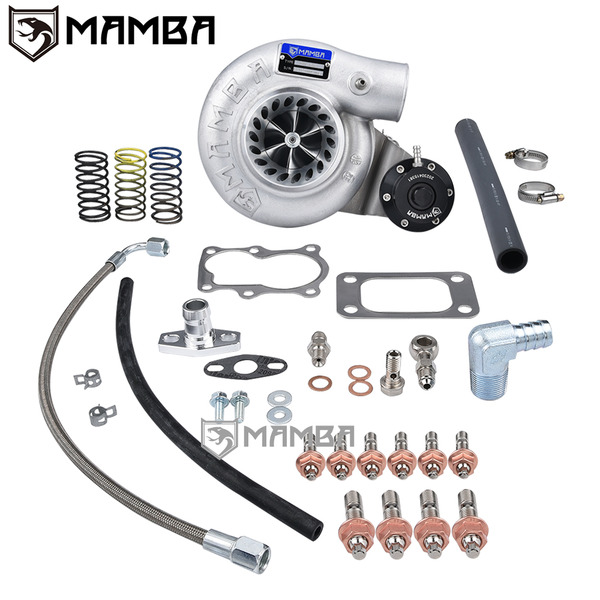

Everything shown on picture is included.

Supplier
MGDAUTO
Warranty
Please refer to “About us”
One year limited warranty.
Product needs to be sent back MGDAUTO for inspecting and repairing job.
Warranty will not be honored in case of damage or malfunction due to overheat, lubrication issue and bent/broken blade is not under warranty.
Replacement parts will be charged.

Tax
The item price includes GST.
