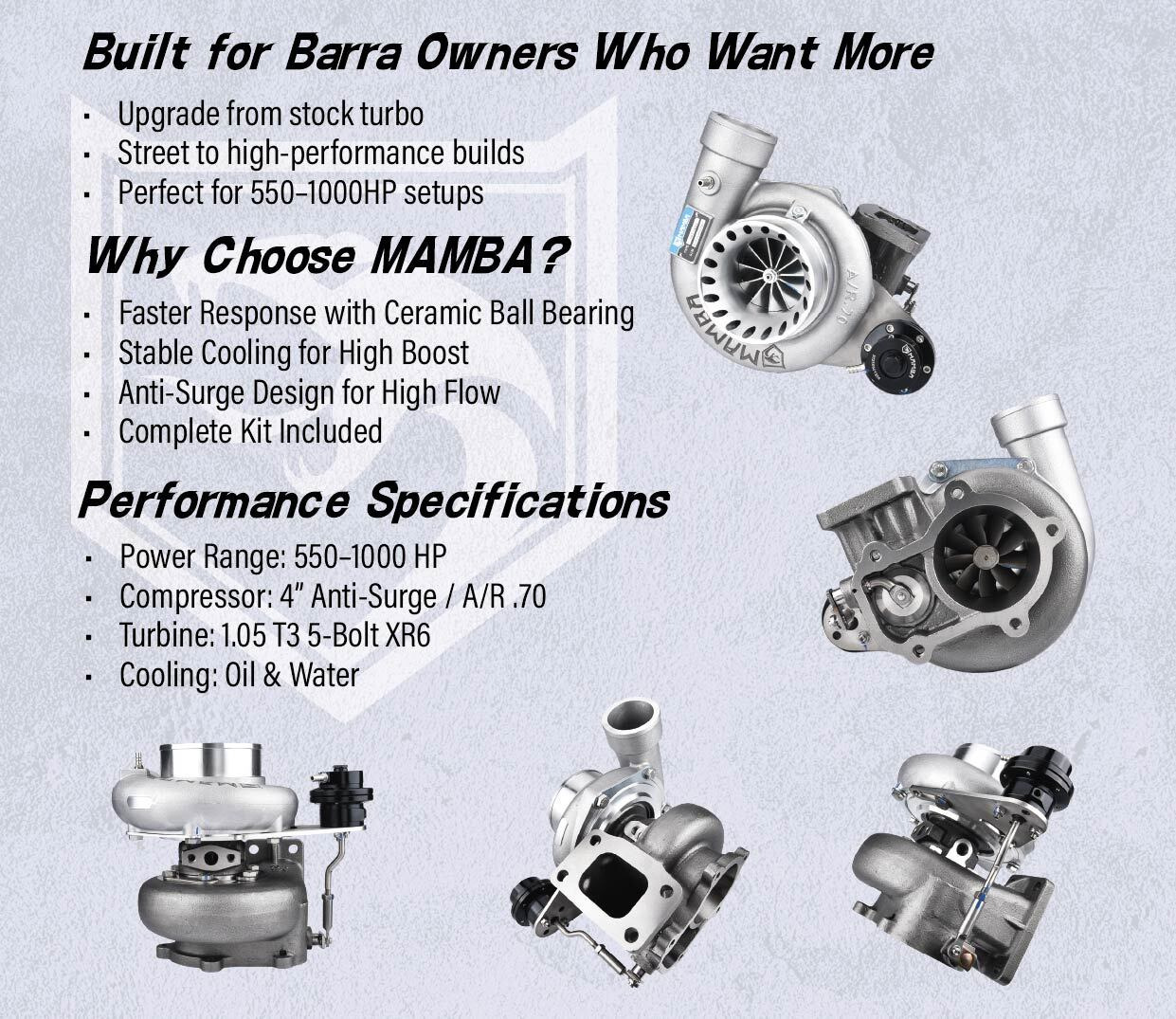

MAMBA GTX3584R Turbo XR6 F6 550–1000HP

Barra Upgrade
Fits Ford XR6 G6E F6. Supports 550–1000HP.

Features
Ball bearing. Oil & water cooled. Anti-surge design.

P/N
002-0040

Item Name
MAMBA FORD FALCON FG XR6 GTX Billet Ball Bearing Turbocharger GTX3584 T04R with
4” .70 Anti Surge Compressor Housing and 1.05 T3 5 Bolt-on Housing

Product Situation
Brand New In Box

Application
Support 550 ~ 1000 HP

Spec
Comp. Wheel : 66.3/84 mm/Trim 64 (GTX T04Z 11+0 Blade Billet Wheel w/ Extended Tip)
Turbine Wheel :62 mm / 68 mm / Trim 84 (GT35R)
Compressor Housing Inlet OD: 4” / 100mm
Compressor Housing Outlet OD: 2.5” / 63.5 mm
Compressor Housing A/R: .70
Turbine Housing A/R : 1.05
Turbine Inlet Flange: T3
Turbine Outlet: STD 5 Bolt for XR6. (Fit factory XR6 Dump pipe)
WG Hole : 34mm (Flapper Dia.: 38mm)

Bearing
Ceramic Dual Ball Bearing
Cooling
Oil and Water-Cooled

Kit Includes
1 × MAMBA XR6 GTX3584R Ball Bearing Turbocharger
1 x 120cm Oil Feed line with 1mm restrictor and filter.
1 x Turbine Inlet Gasket
1 x Turbine Outlet Gasket
1 x Oil Return Gasket
5 x Stud kit with copper coated nut
1 x SCHENCK Core balance sheet.

Supplier
MGDAUTO
Warranty
Please refer to “About us”
One year limited warranty.
Product needs to be sent back MGDAUTO for inspecting and repairing job.
Warranty will not be honored in case of damage or malfunction due to overheat, lubrication issue and bent/broken blade is not under warranty.
Replacement parts will be charged.

Tax
The item price includes GST.

 Why Choose MAMBA → Best Value for Performance
